This weekend I made a lot of progress on my Classic Mac OS app template in C!

Posted 2025-04-20 | Back to blog index

This weekend I made a lot of progress on my Classic Mac OS app template in C!

I have ideas for tools I want to make (mainly for GlobalTalk), but need a foundation to build on. AIRConfig was built on of some very basic sample code included with MPW and really not suitable for extending even as far as I went with AIRConfig

There are also full-blown frameworks like MacApp and PowerPlant, but they seem like quite a lot of complexity to learn just for small tools

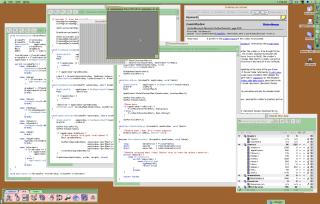

A screenshot of CodeWarrior running in Mac OS 9 with a bunch of code windows open full of C code, and in the front is a sample app with two windows named BasicWindow.

So I've moved from MPW to CodeWarrior, and with heavy (HEAVY) inspiration from Easy App (from the Programming Starter Kit book) been putting together a basic framework.

The main goal is striking the right balance between complexity and simplicity - which is hard to explain for a Classic MacOS Toolbox app since it's so different from how modern apps are written. A Mac OS app does nothing automatically - you need to build the whole event loop manually, with a big switch for event type.

There is a very specific sweet spot in abstraction I'm looking for.

I don't want to go full GUI builder/Object Oriented abstracted framework/document management like PowerPlant appears to do.

But I still want a basic OO style where the framework deals with all the basic window management but I can add new window definitions where I just add implementations for event handler/drawing/onClose/etc.

Easy App is partially there, but has way too many hooks for things I'll never want to customize, meaning each new window is a thousand lines of boilerplate. And there is a bunch of stuff like abstracting window content drawing to also support printing that makes things more complicated than I will ever need.

So I'm reducing that down to something manageable to make hacking together classic mac tools fun.

One thing I have in mind is keeping it simple enough to make a series of videos for next MARCHintosh using it to introduce the very basics of Classic Mac OS Toolbox C programming - walking through what the framework does, and then showing some examples of adding buttons to windows that play sounds or show dialogs, and then opening up a Projector (version control system) database (repository) on GlobalTalk for anyone else to add stuff in a collaborative project.

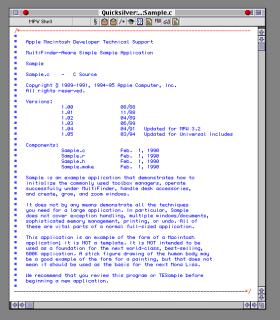

For reference, here is the sample code that AIRConfig was based on. Note how emphatic the paragraph at the end is about how "it is NOT a template"!!

Sample is on example application that demonstrates how to initialize the commonly used toolbox managers, operate successfully under MultiFinder, handle desk accessories, and create, grow, and zoom windows.It does not by any means demonstrate all the techniques you need tor a large application. In particular, sample does not cover exception handling, multiple windous/documents, sophisticated memory management, printing, or undo. All of these are vital parts of a normal full-sized application.This application is on example of the form of a Macintosh application; it is NOT a template. It is NOT intended to be used as a foundation for the next world-class, best-selling.600k application. A stick figure drawing of the human body may be a good example of the form for a painting, but that does not mean it should be used as the basis for the next Mona Lisa.We recommend that you review this progrom or TESample before beginning a new application.

Update on 2025-04-26:

Made huuuge amounts of progress today

- Windows with programmatically created controls

- Windows with controls loaded from a DITL resource

- Modal dialogs

- Error alerts (just give it a string)

- Appearance Manager support for the above

- TextEdit control with working appearance manager theming (with focus outline) and working edit menu items

Left on TODO:

- List Manager

- Code cleanup

- Nicer sample app

Then I can get started on the apps I actually want to write!

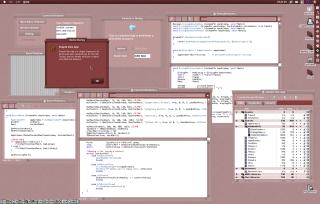

A screenshot of classic MacOS showing a simple app with a few windows in the kaleidoscope scheme “antique”

Dealing with the Appearance Manager and wrangling it into drawing the outline for the TextEdit control was definitely the most difficult part today. And I'm still not quite sure if I'm doing it right, probably not.

E.g. there's no theme color for the background of the text field, so I'm using kThemeDocumentWindowBackgroundBrush. Also there's none for the text!

Update on 2025-04-29:

List Manager lists are working! With focus/tabbing and type-to-search support as well (all of which you have to do manually, of course). Of course with Appearance Manager support as well as fallback drawing for System 7.

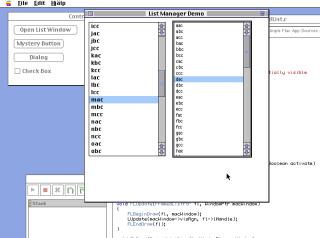

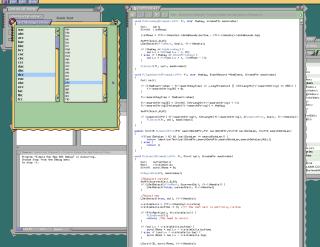

List Manager demo with two lists of random strings, with a focus rect around the second one. In the background the C code powering it is also visible The same list Manager demo but in System 7 styling with basic black outlines

Next step is making sure everything works on older OSes - I've only been testing on my G4 in MacOS 9.2.2 so far.

Infinite Mac is great for this!

- System 7: crashes

- MacOS 8.1: crashes

- MacOS 8.5: works

Looks like I have my work cut out for me

Installed QEMU for easier debugging with MacsBug.

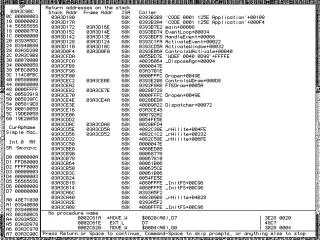

Here's the stack trace, and a screenshot of the code.

It's crashing in FrameRect - trying to draw a rectangle. Really weird! Right before that it's drawing text, so the grafport is set correctly. We're in the event loop so it's not due to interrupts. I tried making a static rect instead of pulling it from the TextEdit handle, so it's not a bad pointer or corrupted coordinates.

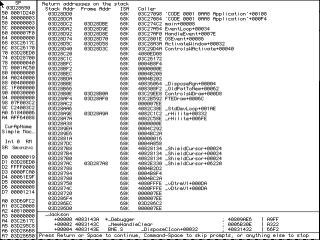

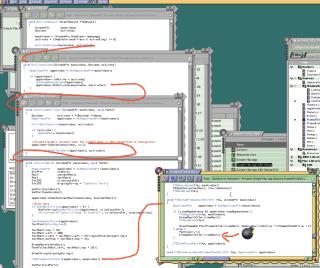

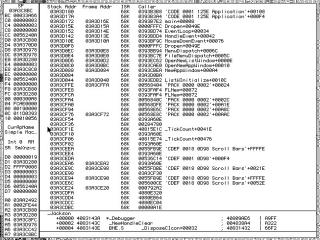

MacsBug Debugger, showing a stack trace going from EventLoop to ActivateWindow ending in FTEDraw and then system code The former stack trace highlighted in the actual code

After banging my head against it for an hour or teo, I started looking at some other QuickDraw sample code to see if there was anything missing.

The sample code was setting the pen pattern to black. I mean, I'm sure it defaults to that so there's no point in setting it but...

Damn. That fixed it!! What the heck! Well, works perfectly in System 7 now!

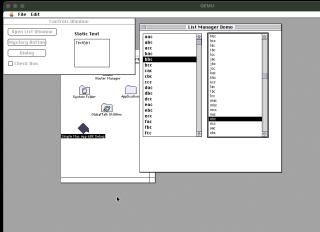

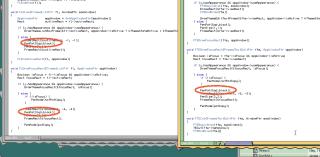

A screenshot of System 7 running in QEMU showing the list Manager demo The code, with the new PenPat call highlighted

Out of time for today, but I did a bit of testing in MacOS 8.1 in Infinite Mac (installing MacOS 8 w MacsBug into QEMU will have to be another day) to narrow down the crashes:

- The window with the TextEdit crashes, but that crash goes away when I disable the Appearance Manager drawing code

- The window with the List Manager lists crashes even without Appearance Manager

The appearance manager crash could be due to differences in AM 1.0 in MacOS 8 and AM 1.1 in MacOS 8.5. Dunno about the lists…
